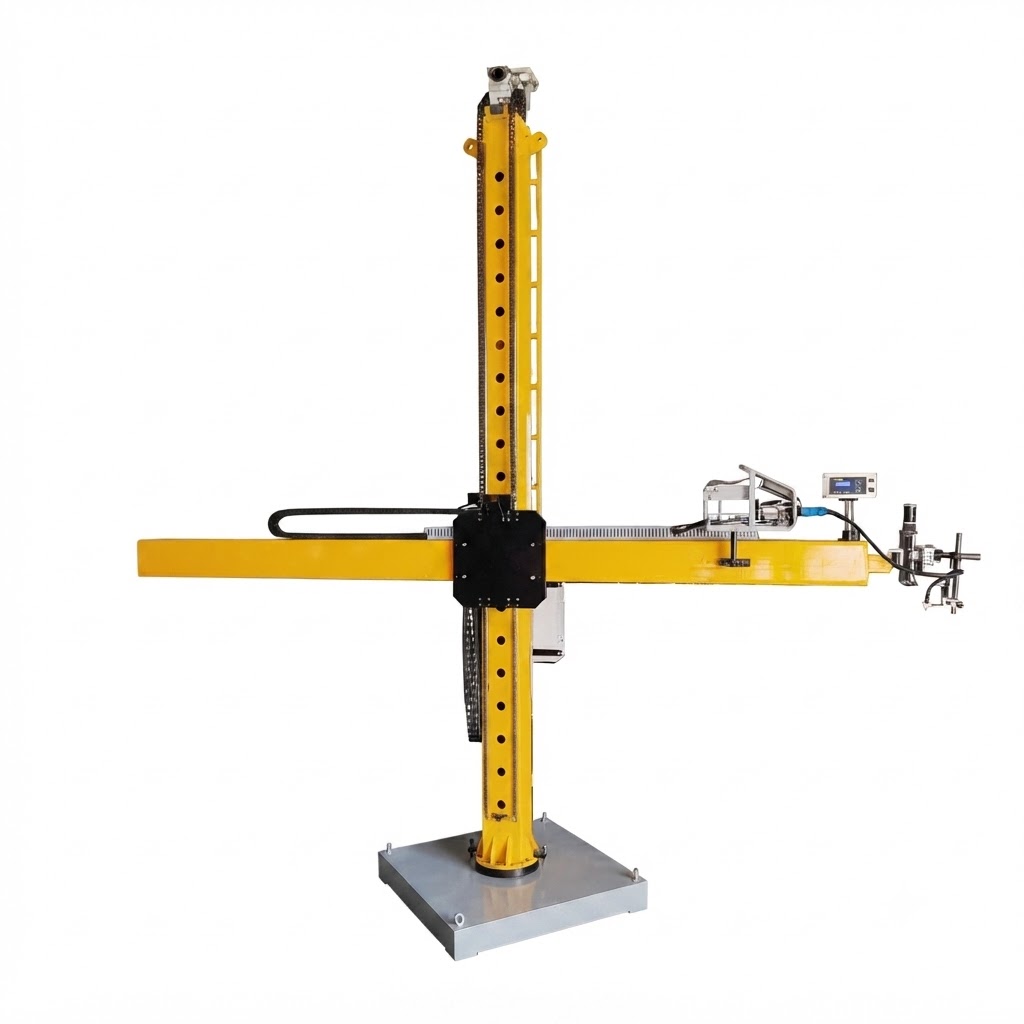

Column and Boom Welding Machine Manufacturers in India - Dynamic Engineering and Solutions

Dynamic Engineering and Solutions is prominent Column and Boom Welding Machine Manufacturers, Suppliers, Traders and Exporters in India. We provide precision-engineered welding automation solutions designed around industrial productivity, consistency, and long-term value.

With 20+ years of proven solution expertise, we combine engineering knowledge, in-house fabrication capabilities, and application-focused design to deliver dependable equipment at competitive pricing. Our experience across heavy fabrication, process equipment manufacturing, and OEM requirements helps us develop practical solutions for demanding welding applications. From concept and design to manufacturing, installation, and commissioning, we offer complete support.

Our globally trusted, field-proven approach, quality-focused manufacturing, and customized engineering capability make us a reliable partner for efficient and repeatable industrial welding processes.

What Is a Column Boom Welding Machine and How Does It Support Industrial Welding?

A Column Boom Welding Machine is an automated welding arrangement used to position a welding torch accurately along large or heavy workpieces. It combines controlled vertical and horizontal movement with a welding system to improve weld consistency, productivity, operator safety, and process control. The equipment is widely relevant to pressure vessels, tanks, pipes, structural fabrication, and heavy engineering industries. A Welding Column and Boom Machine can be configured according to workpiece dimensions and specific production requirements.

Working Principle of Column and Boom Welding Machine

The working principle of a Column and Boom Welding Machine combines precise mechanical movement, controlled welding parameters, and automated torch positioning to produce consistent welds on large and heavy components. This coordinated operation forms an effective Column and Boom Welding System for demanding industrial applications.

Workpiece Positioning: The workpiece, such as a pipe, tank, or pressure vessel, is securely placed on a rotator, positioner, or suitable fixture.
Column Adjustment: The motorized column moves vertically to position the welding head at the required working height.
Boom Movement: The boom moves horizontally inward or outward to accurately position the welding torch over the weld joint.
Torch Alignment: The torch is aligned with the weld seam to maintain proper positioning throughout the welding cycle.
Arc Initiation: The welding arc generates heat to melt the base material and filler metal, creating a strong and uniform joint.
Controlled Welding: The boom maintains steady torch movement while welding wire is continuously fed at a controlled speed for consistent weld quality.
Workpiece Rotation: For circular joints, a welding rotator or positioner rotates the workpiece at a controlled speed while the torch maintains its position.
Safety Control: Limit switches, emergency stops, and anti-fall protection help ensure safe and controlled machine operation.

This coordinated operation enables the Column Boom Welding System to deliver consistent weld quality, improved productivity, and reduced manual effort for heavy fabrication applications.

Types of Column and Boom Welding Machine

As Column and Boom Welding Machine Manufacturers, Suppliers, Traders and Exporters in India, we offer versatile machine configurations engineered for accurate welding, smooth operation, and varied industrial applications. Depending on the application, the equipment can also be designed as a Column and Boom Welding Manipulator for controlled torch positioning across large components.

Fixed Column and Boom Welding Machine: Installed at a stationary welding bay, this configuration keeps the machine fixed while the workpiece is positioned within its operating range. It is suitable for repetitive production where stable torch positioning and consistent weld quality are essential.
Travelling Column and Boom Welding Machine: Mounted on a floor track, this system travels along the fabrication area to cover long and oversized workpieces. It is well suited for tanks, pressure vessels, structural components, and other large fabrication jobs.
Motorized Column and Boom Welding Machine: Powered vertical and horizontal movements allow the welding head to be positioned smoothly and accurately during operation. This arrangement reduces manual effort and supports efficient Welding Automation with improved torch control. The motorized arrangement can function as a Welding Boom Machine where controlled horizontal torch travel is required.
Extra Light-Duty Column and Boom Welding Machine: Designed for smaller fabrication requirements, these models generally provide working reaches of up to approximately 3 m × 3 m, depending on the application. A mechanical lead-screw mechanism provides controlled vertical movement for accurate welding-head positioning.
Light-Duty Column and Boom Welding Machine: Suitable for general fabrication and comparatively smaller components, this configuration combines compact construction with dependable movement control. It offers an economical solution for applications requiring repeatable welding and reliable torch positioning.
Medium-Duty Column and Boom Welding Machine: Developed for larger industrial components, this range provides greater structural strength for demanding welding operations. Rack-and-pinion vertical movement with a suitable counterweight safety arrangement ensures controlled and stable boom positioning. Such equipment can be integrated as a Welding Manipulator Machine for applications requiring accurate and repeatable welding-head movement.
Heavy-Duty Column and Boom Welding Machine: Built for heavy fabrication environments, this configuration provides robust construction and higher load-handling capability for extended operating cycles. The Heavy Duty Column and Boom Welding Machine configuration is suitable for demanding production environments where stability, reach, and continuous operation are important.
Extra Heavy-Duty (EHD) Column and Boom Welding Machine: Engineered for high-capacity applications, these systems can accommodate heavy payloads such as SAW dual-wire setups, large flux hoppers, and wire reels over extended reaches. They are ideal for large-scale fabrication requiring dependable Welding Automation Equipment.

Technical Specifications of Column and Boom Welding Machine

As Column and Boom Welding Machine Suppliers, Manufacturers, Traders and Exporters in India, we provide customized specifications based on workpiece size, welding process, operating reach, and production requirements. A Customized Column and Boom Welding Machine can be developed with suitable travel, mounting, payload, and welding-process configurations.

Specification	Typical Details
Vertical Column Stroke	1–10+ m
Horizontal Boom Stroke	1–10+ m
Vertical Speed	Fixed or variable, up to 1000 mm/min
Horizontal Speed	100–1000+ mm/min, adjustable through AC VFD
Payload Capacity	50–450 kg, depending on configuration
Column Rotation	Manual or motorized, 180°–360°
Power Supply	380–415 V AC, 3-phase; 110 V AC for selected small units
Anti-Fall Protection	Mechanical safety locking mechanism
Limit Switches	Provided to control axis travel and prevent over-travel
Control System	Remote pendant with approximately 5–10 m cable
Mounting Options	Fixed pedestal, manual trolley, or motorized trolley
Welding Compatibility	SAW, MIG/MAG, and application-specific processes
Automation Level	Semi-automatic to fully automated
Configuration	Customized to component size and welding requirements

Features and Benefits of Column and Boom Welding Machine

As Column and Boom Welding Machine Traders, Suppliers, Manufacturers and Exporters in India, we offer reliable machines designed for precise positioning, consistent welding, safe operation, and improved productivity.

Key Feature	Description	Key Benefit	Production Advantage
Motorized Movement	Smooth column and boom positioning	Reduces manual effort	Improves welding efficiency
Heavy-Duty Construction	Robust structure for heavy fabrication	Provides stability and durability	Supports continuous industrial use
Variable Speed Control	VFD-based movement speed control	Improves torch control	Ensures consistent weld quality
Extended Working Reach	Long vertical and horizontal travel	Covers large workpieces effectively	Reduces repositioning time
Automatic Torch Positioning	Accurate torch alignment with the weld joint	Improves welding consistency	Reduces operator dependency
Anti-Fall Safety System	Prevents unexpected boom descent	Enhances operational safety	Protects equipment and workpieces
Remote Pendant Control	Convenient control of machine movement	Simplifies operation	Improves operator productivity
Customizable Design	Configurable dimensions and travel	Meets application-specific needs	Supports flexible welding automation
Process Integration	Supports SAW, MIG/MAG, and other processes	Provides process flexibility	Enables efficient automated welding
Industrial-Grade Components	Durable components for demanding applications	Supports reliable operation	Reduces downtime and maintenance

Applications of Column and Boom Welding Machine

As Column and Boom Welding Machine Exporters, Traders, Suppliers and Manufacturers in India, we serve diverse industries with efficient welding solutions for heavy fabrication and large industrial components.

Pressure Vessel Manufacturing: Used for precise and consistent welding of large pressure vessels, shells, heads, and longitudinal joints with controlled torch movement.
Storage Tank Fabrication: Supports efficient welding of large tank sections and cylindrical shells where stable positioning and uniform weld quality are essential.
Pipe and Pipeline Welding: Provides accurate torch positioning for longitudinal and circumferential pipe joints, making it suitable for demanding industrial pipe fabrication.
Boiler and Heat Exchanger Manufacturing: Helps achieve consistent welds on boiler components, heat exchanger sections, and other fabricated equipment requiring reliable Automated Welding.
Heavy Structural Fabrication: Enables controlled welding of large structural assemblies, beams, frames, and fabricated sections with improved productivity.
Process Equipment Manufacturing: Used for welding reactors, vessels, ducts, and other process equipment where repeatable weld quality and precise torch alignment are required.
Shipbuilding and Large Fabrication: Supports the welding of oversized plates, sections, and heavy assemblies through extended machine reach and controlled movement.
Heavy Engineering and OEM Production: Integrates with a Welding Automation Machine to streamline repetitive welding operations and improve production consistency across industrial manufacturing. With suitable integration, it can support Automated Column and Boom Welding for repeatable production cycles.

Why Choose Us?

20+ Years of Engineering Experience: We bring over two decades of practical expertise in developing reliable and application-focused welding automation solutions for demanding industrial requirements.
Customized Quality Solutions: We combine robust engineering, quality-focused manufacturing, and customized machine configurations to deliver solutions aligned with each customer’s component, process, and production needs.
Value-Driven Customer Support: We focus on competitive pricing, dependable performance, and responsive project support to provide long-term value from selection and installation through commissioning and service.

Choose Dynamic Engineering and Solutions is trusted Column and Boom Welding Machine Manufacturers, Suppliers, Traders and Exporters in India. We provide reliable Column Boom Welding Machine solutions engineered for accuracy, productivity, and consistent welding performance. With 20+ years of engineering experience, customized capabilities, quality-focused manufacturing, and responsive support, we help industries streamline fabrication, reduce manual effort, and achieve dependable results across demanding welding applications. Contact us for additional details.

FAQ’s

The column moves vertically while the boom travels horizontally to position the welding torch over the required joint. The welding system then performs controlled welding while maintaining consistent torch positioning and travel.

The system can be configured for processes such as SAW and MIG/MAG, depending on the application. The welding arrangement is selected according to material, joint design, thickness, and required production output.

The vertical and horizontal strokes can typically range from approximately 1 metre to more than 10 metres. The actual dimensions are engineered according to the workpiece size and required welding coverage.

Yes, heavy-duty and extra heavy-duty configurations are designed for large components and demanding industrial welding operations. They can accommodate suitable welding heads, wire feeders, flux hoppers, and other process equipment.
